Name: AOZ8131DI-05L
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ8131DI-05L
Price: 0.56 USD
Availability: InStock

REF: AOZ8131DI-05L Alpha & Omega Semiconductor Inc.

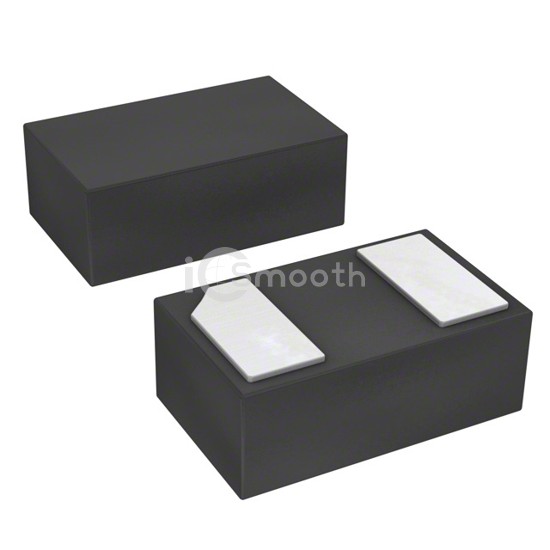

AOZ8131DI-05L

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 22VC 2DFN

AOZ8131DI-05L is a TVS - Diodes manufactured by Alpha & Omega Semiconductor Inc.. TVS DIODE 5VWM 22VC 2DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 2-UDFN.

Datasheet Request a Quote

In Stock: 80,467

Tiered Pricing USD

1+ $0.5600 —

10+ $0.3440 -39%

100+ $0.2193 -61%

500+ $0.1652 -70%

1,000+ $0.1478 -74%

2,000+ $0.1330 -76%

5,000+ $0.1171 -79% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	22V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	1.25pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-UDFN
Supplier Device Package	2-DFN (1x0.6)
