Name: AOZ8001AJI-05
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ8001AJI-05
Availability: InStock

REF: AOZ8001AJI-05 Alpha & Omega Semiconductor Inc.

AOZ8001AJI-05

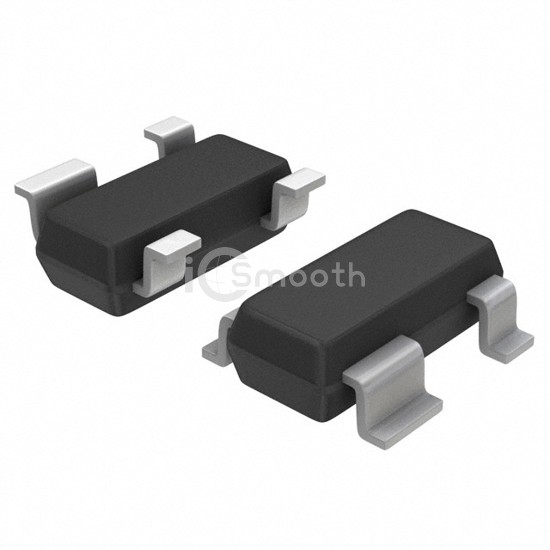

TVS DIODE 5VWM 16VC SOT143-4

AOZ8001AJI-05 is a TVS - Diodes manufactured by Alpha & Omega Semiconductor Inc.. TVS DIODE 5VWM 16VC SOT143-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-253-4, TO-253AA.

Datasheet Request a Quote

In Stock: 2,794

Specifications

16 parameters

Product Status	Obsolete
Type	Steering (Rail to Rail)
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	8.5V (Typ)
Voltage - Clamping (Max) @ Ipp	16V
Current - Peak Pulse (10/1000µs)	18A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	Yes
Applications	Ethernet
Capacitance @ Frequency	1.8pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Supplier Device Package	SOT-143-4
