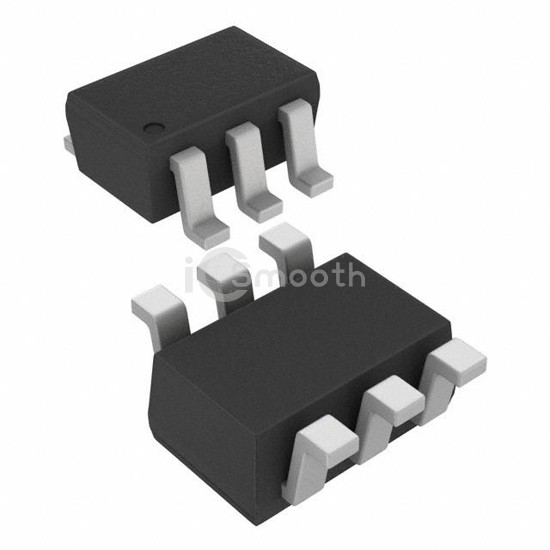

Name: AOZ8000HI_2
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ8000HI_2
Availability: InStock

REF: AOZ8000HI_2 Alpha & Omega Semiconductor Inc.

AOZ8000HI_2

TVS DIODE 5.5VWM 15VC SC70-6

AOZ8000HI_2 is a TVS - Diodes manufactured by Alpha & Omega Semiconductor Inc.. TVS DIODE 5.5VWM 15VC SC70-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Request a Quote

In Stock: 4,055

Specifications

16 parameters

Product Status	Obsolete
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.6V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	12A

Power - Peak Pulse	60W
Power Line Protection	Yes
Applications	DVI, Ethernet, USB
Capacitance @ Frequency	1.85pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SC-70-6
