Name: LZE-13-100-A-00-10-S
Brand: Alliance Sensors Group
SKU: LZE-13-100-A-00-10-S
Price: 386.71 USD
Availability: InStock

REF: LZE-13-100-A-00-10-S Alliance Sensors Group

LZE-13-100-A-00-10-S

Alliance Sensors Group

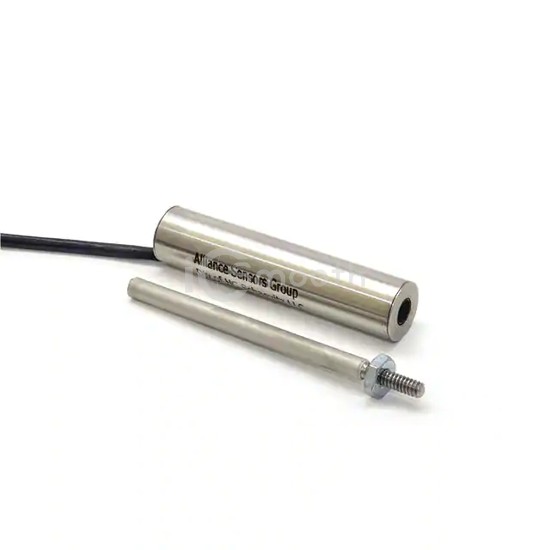

LINEAR POSITION SENSOR 4" RANGE,

LZE-13-100-A-00-10-S is a Position Sensors - Angle, Linear Position Measuring manufactured by Alliance Sensors Group. LINEAR POSITION SENSOR 4" RANGE,. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 105°C, voltage - supply 12V ~ 30V, package / case Cylinder, Wire Leads.

Datasheet Request a Quote

In Stock: 4

Tiered Pricing USD

1+ $386.7100 —

5+ $363.9440 -6%

10+ $355.4540 -8%

25+ $345.2824 -11% BEST

Specifications

17 parameters

Product Status	Active
For Measuring	Linear Position
Technology	LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical	-
Linear Range	0 ~ 100.00mm (0 ~ 3.94")
Output	0V ~ 10V
Output Signal	-
Actuator Type	Round Shaft
Linearity	±0.15%

Resistance	-
Resistance Tolerance	-
Voltage - Supply	12V ~ 30V
Mounting Type	Chassis Mount
Termination Style	Cable
Operating Temperature	-20°C ~ 105°C
Package / Case	Cylinder, Wire Leads
Supplier Device Package	-
