Name: LVI-45-200-R-01-20-S
Brand: Alliance Sensors Group
SKU: LVI-45-200-R-01-20-S
Price: 1385.00 USD
Availability: InStock

REF: LVI-45-200-R-01-20-S Alliance Sensors Group

LVI-45-200-R-01-20-S

Alliance Sensors Group

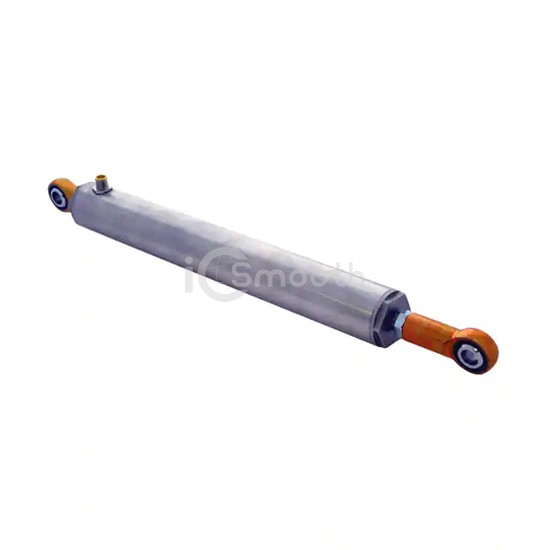

SENSOR LINEAR 203.2MM CONNECTOR

LVI-45-200-R-01-20-S is a Position Sensors - Angle, Linear Position Measuring manufactured by Alliance Sensors Group. SENSOR LINEAR 203.2MM CONNECTOR. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 85°C, package / case Cylinder, termination style Connector.

Datasheet Request a Quote

In Stock: 2

Specifications

17 parameters

Product Status	Active
For Measuring	Linear Position
Technology	LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical	-
Linear Range	0 ~ 203.20mm (0 ~ 8.00")
Output	4mA ~ 20mA
Output Signal	-
Actuator Type	Round Shaft
Linearity	±0.15%

Resistance	-
Resistance Tolerance	-
Voltage - Supply	-
Mounting Type	Chassis Mount
Termination Style	Connector
Operating Temperature	-20°C ~ 85°C
Package / Case	Cylinder
Supplier Device Package	-
