Name: LRE-19-200-R-00-10-A
Brand: Alliance Sensors Group
SKU: LRE-19-200-R-00-10-A
Price: 478.85 USD
Availability: InStock

REF: LRE-19-200-R-00-10-A Alliance Sensors Group

LRE-19-200-R-00-10-A

Alliance Sensors Group

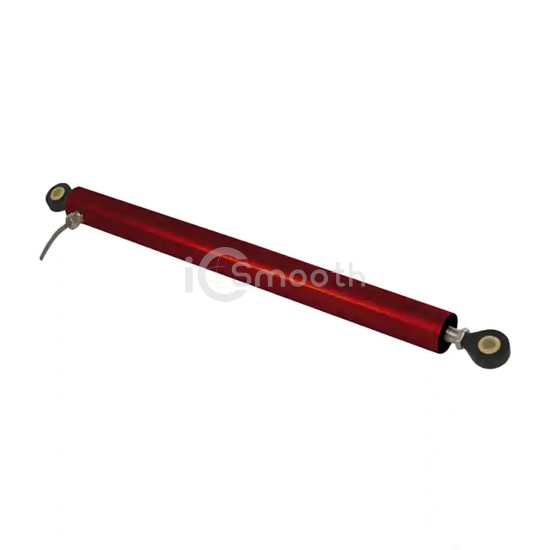

SENSOR LINEAR 203.2MM CABLE

LRE-19-200-R-00-10-A is a Position Sensors - Angle, Linear Position Measuring manufactured by Alliance Sensors Group. SENSOR LINEAR 203.2MM CABLE. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 85°C, voltage - supply 0V ~ 10V, package / case Cylinder.

Datasheet Request a Quote

In Stock: 6

Tiered Pricing USD

1+ $478.8500 —

5+ $470.0000 -2% BEST

Specifications

17 parameters

Product Status	Active
For Measuring	Linear Position
Technology	LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical	-
Linear Range	0 ~ 203.20mm (0 ~ 8.00")
Output	0 V ~ 10 V
Output Signal	-
Actuator Type	Round Shaft
Linearity	±0.15%

Resistance	-
Resistance Tolerance	-
Voltage - Supply	0V ~ 10V
Mounting Type	Chassis Mount
Termination Style	Cable
Operating Temperature	-20°C ~ 85°C
Package / Case	Cylinder
Supplier Device Package	-
