Name: ARG81880KEJJTR
Brand: Allegro MicroSystems
SKU: ARG81880KEJJTR
Availability: InStock

REF: ARG81880KEJJTR Allegro MicroSystems

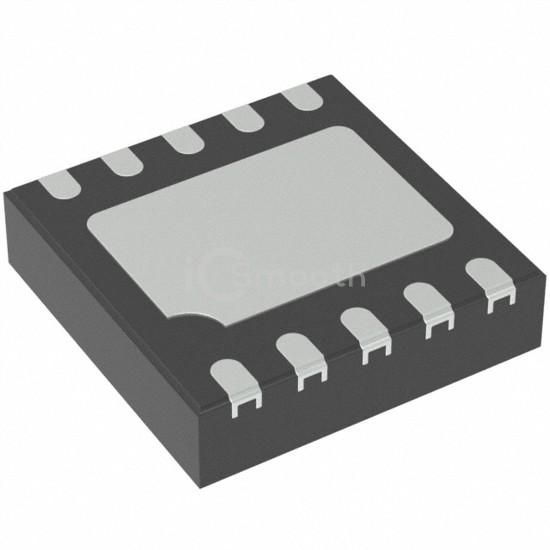

ARG81880KEJJTR

IC REG BUCK 2.5V/3.3V/5V 10DFN

ARG81880KEJJTR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Allegro MicroSystems. IC REG BUCK 2.5V/3.3V/5V 10DFN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), package / case 10-WFDFN Exposed Pad, current - output 800mA.

Request a Quote

In Stock: 2,822

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	46V
Voltage - Output (Min/Fixed)	2.5V, 3.3V, 5V

Voltage - Output (Max)	-
Current - Output	800mA
Frequency - Switching	2.2MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
