Name: ACS770LCB-100U-PFF-T
Brand: Allegro MicroSystems
SKU: ACS770LCB-100U-PFF-T
Price: 8.10 USD
Availability: InStock

REF: ACS770LCB-100U-PFF-T Allegro MicroSystems

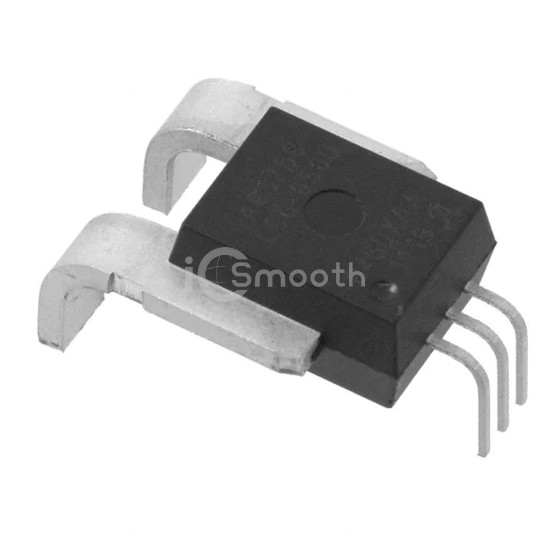

ACS770LCB-100U-PFF-T

Allegro MicroSystems

SENSOR CURRENT HALL 100A DC

ACS770LCB-100U-PFF-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 100A DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - supply 5V, package / case 5-CB Formed Leads, PFF.

Datasheet Request a Quote

In Stock: 2,114

Tiered Pricing USD

1+ $8.1000 —

5+ $7.3180 -10%

10+ $7.0250 -13%

34+ $6.5674 -19%

68+ $6.3379 -22%

102+ $6.2126 -23%

510+ $5.7731 -29%

1,020+ $5.6093 -31% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	100A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	40mV/A
Frequency	DC ~ 120kHz
Linearity	±1%

Accuracy	±0.6%
Voltage - Supply	5V
Response Time	4.6µs
Current - Supply (Max)	15mA
Operating Temperature	-40°C ~ 150°C
Polarization	Unidirectional
Mounting Type	Through Hole
Package / Case	5-CB Formed Leads, PFF
Supplier Device Package	5-CB Module
