ACS770KCB-150U-PSF-T

In Stock: 9,315

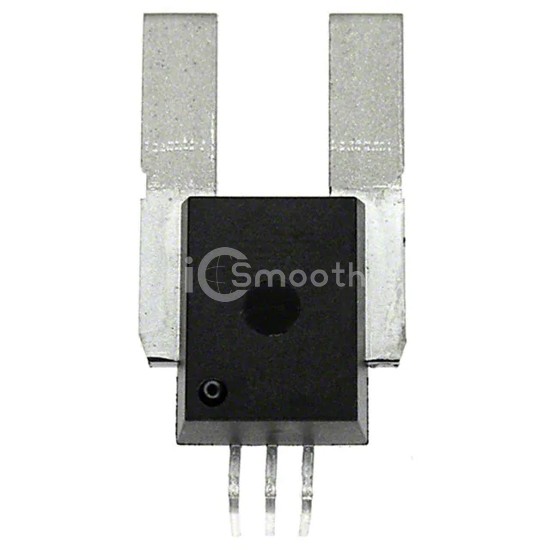

ACS770KCB-150U-PSF-T - Allegro MicroSystems - Current Sensors
REF: ACS770KCB-150U-PSF-T Allegro MicroSystems
ACS770KCB-150U-PSF-T

Allegro MicroSystems

LINEAR CURRENT SENSOR

ACS770KCB-150U-PSF-T is a Current Sensors manufactured by Allegro MicroSystems. LINEAR CURRENT SENSOR. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case 5-CB Formed Leads, PSF.

Datasheet Request a Quote

In Stock: 9,315

Specifications

18 parameters
Product StatusActive
For MeasuringDC
Sensor TypeHall Effect, Open Loop
Current - Sensing150A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity26.7mV/A
FrequencyDC ~ 120kHz
Linearity±1%
Accuracy±0.6%
Voltage - Supply5V
Response Time4.6µs
Current - Supply (Max)15mA
Operating Temperature-40°C ~ 125°C
PolarizationUnidirectional
Mounting TypeThrough Hole
Package / Case5-CB Formed Leads, PSF
Supplier Device Package5-CB Module
