ACS759LCB-100B-PFF-T

In Stock: 6,132

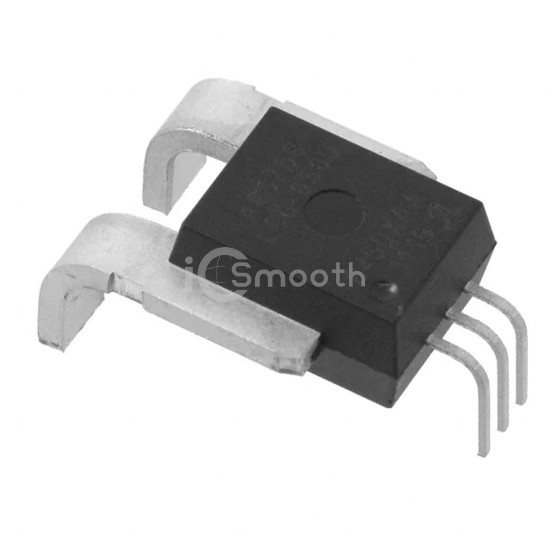

ACS759LCB-100B-PFF-T - Allegro MicroSystems - Current Sensors
REF: ACS759LCB-100B-PFF-T Allegro MicroSystems
ACS759LCB-100B-PFF-T

Allegro MicroSystems

SENSOR CURRENT HALL 100A AC/DC

ACS759LCB-100B-PFF-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 100A AC/DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - supply 3V ~ 3.6V, package / case 5-CB Formed Leads, PFF.

Datasheet Request a Quote

In Stock: 6,132

Tiered Pricing USD
1+ $6.8900 —
5+ $6.2200 -10%
10+ $5.9710 -13%
34+ $5.5824 -19%
68+ $5.3872 -22%
102+ $5.2807 -23%
510+ $4.9500 -28% BEST

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing100A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity13.2mV/A
FrequencyDC ~ 120kHz
Linearity±1%
Accuracy±4%
Voltage - Supply3V ~ 3.6V
Response Time4µs
Current - Supply (Max)13.5mA
Operating Temperature-40°C ~ 150°C
PolarizationBidirectional
Mounting TypeThrough Hole
Package / Case5-CB Formed Leads, PFF
Supplier Device Package5-CB Module
