Name: ACS756SCB-100B-PFF-T
Brand: Allegro MicroSystems
SKU: ACS756SCB-100B-PFF-T
Price: 7.94 USD
Availability: InStock

REF: ACS756SCB-100B-PFF-T Allegro MicroSystems

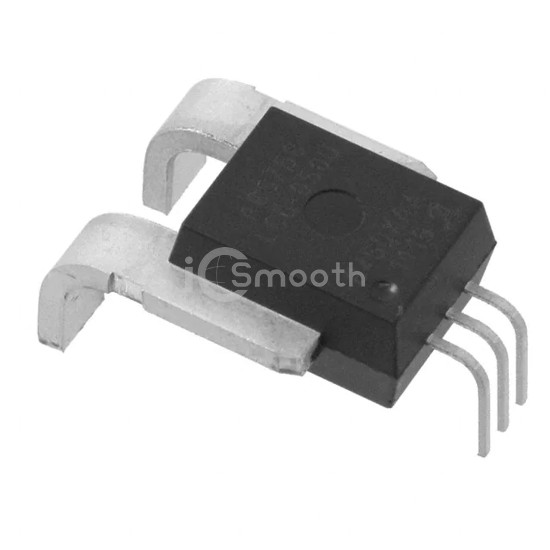

ACS756SCB-100B-PFF-T

Allegro MicroSystems

SENSOR CURRENT HALL

ACS756SCB-100B-PFF-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 5-CB Formed Leads, PFF.

Datasheet Request a Quote

In Stock: 4,939

Tiered Pricing USD

1+ $7.9400 —

5+ $7.1700 -10%

10+ $6.8840 -13%

34+ $6.4362 -19%

68+ $6.2112 -22%

102+ $6.0883 -23%

510+ $5.6577 -29%

1,020+ $5.4972 -31% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	100A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	20mV/A
Frequency	DC ~ 120kHz
Linearity	±1.75%

Accuracy	±7%
Voltage - Supply	3V ~ 5.5V
Response Time	3µs
Current - Supply (Max)	14mA
Operating Temperature	-20°C ~ 85°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	5-CB Formed Leads, PFF
Supplier Device Package	5-CB Module
