ACS756SCA-050B-PFF-T

In Stock: 1,609

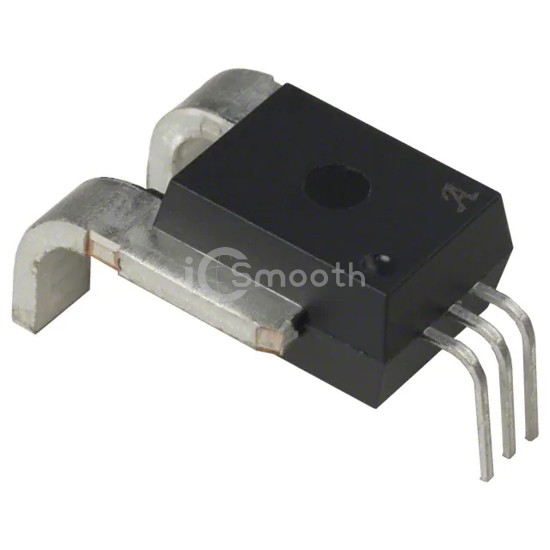

ACS756SCA-050B-PFF-T - Allegro MicroSystems - Current Sensors
REF: ACS756SCA-050B-PFF-T Allegro MicroSystems
ACS756SCA-050B-PFF-T

Allegro MicroSystems

SENSOR CURRENT HALL 50A AC/DC

ACS756SCA-050B-PFF-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 50A AC/DC. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 5-CA Formed Leads, PFF.

Datasheet Request a Quote

In Stock: 1,609

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing50A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity40mV/A
FrequencyDC ~ 120kHz
Linearity±1%
Accuracy±5%
Voltage - Supply3V ~ 5.5V
Response Time3µs
Current - Supply (Max)14mA
Operating Temperature-20°C ~ 85°C
PolarizationBidirectional
Mounting TypeThrough Hole
Package / Case5-CA Formed Leads, PFF
Supplier Device Package5-CA Module
