ACS754SCB-100-PFF

In Stock: 4,228

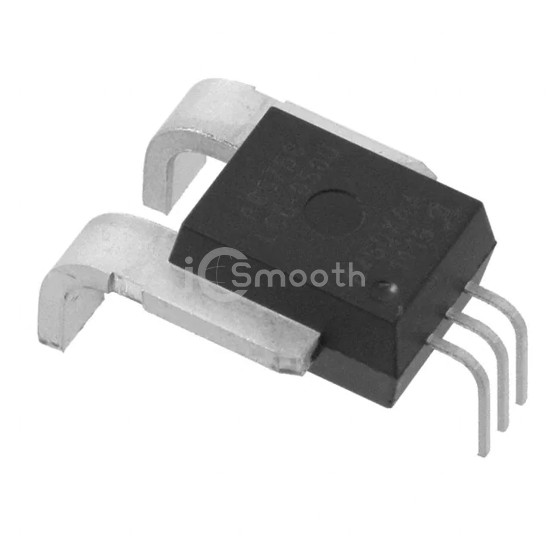

ACS754SCB-100-PFF - Allegro MicroSystems - Current Sensors
REF: ACS754SCB-100-PFF Allegro MicroSystems
ACS754SCB-100-PFF

Allegro MicroSystems

SENSOR CURRENT HALL 100A AC/DC

ACS754SCB-100-PFF is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 100A AC/DC. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage - supply 5V, package / case 5-CB Formed Leads, PFF.

Datasheet Request a Quote

In Stock: 4,228

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing100A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity20mV/A
FrequencyDC ~ 35kHz
Linearity±0.8%
Accuracy±0.9%
Voltage - Supply5V
Response Time11µs
Current - Supply (Max)10mA
Operating Temperature-20°C ~ 85°C
PolarizationBidirectional
Mounting TypeThrough Hole
Package / Case5-CB Formed Leads, PFF
Supplier Device Package5-CB Module
