ACS754LCB-100-PSF

In Stock: 3,549

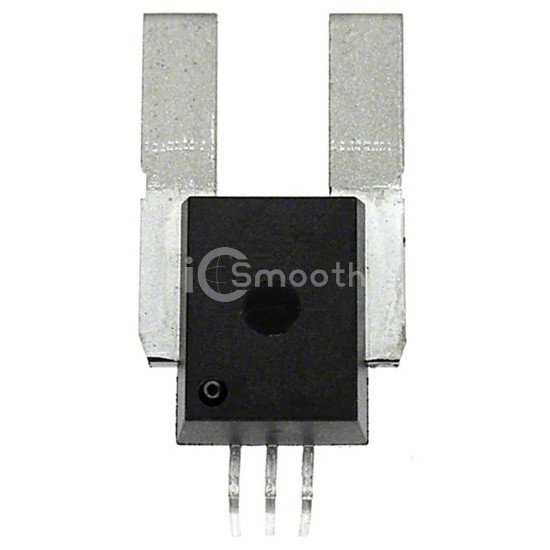

ACS754LCB-100-PSF - Allegro MicroSystems - Current Sensors
REF: ACS754LCB-100-PSF Allegro MicroSystems
ACS754LCB-100-PSF

Allegro MicroSystems

SENSOR CURRENT HALL 100A AC/DC

ACS754LCB-100-PSF is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 100A AC/DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - supply 5V, package / case 5-CB Formed Leads, PSF.

Datasheet Request a Quote

In Stock: 3,549

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing100A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity20mV/A
FrequencyDC ~ 35kHz
Linearity±1.5%
Accuracy±1%
Voltage - Supply5V
Response Time11µs
Current - Supply (Max)10mA
Operating Temperature-40°C ~ 150°C
PolarizationBidirectional
Mounting TypeThrough Hole
Package / Case5-CB Formed Leads, PSF
Supplier Device Package5-CB Module
