ACS750SCA-100

In Stock: 7,569

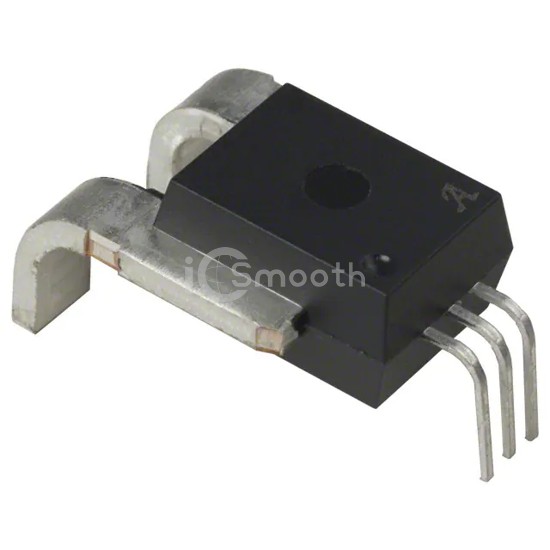

ACS750SCA-100 - Allegro MicroSystems - Current Sensors
REF: ACS750SCA-100 Allegro MicroSystems
ACS750SCA-100

Allegro MicroSystems

SENSOR CURRENT HALL 100A AC/DC

ACS750SCA-100 is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 100A AC/DC. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage - supply 5V, package / case 5-CA Formed Leads, PFF.

Datasheet Request a Quote

In Stock: 7,569

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing100A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity19.75mV/A
FrequencyDC ~ 13kHz
Linearity±5%
Accuracy±1.5%
Voltage - Supply5V
Response Time27µs
Current - Supply (Max)10mA
Operating Temperature-20°C ~ 85°C
PolarizationBidirectional
Mounting TypeThrough Hole
Package / Case5-CA Formed Leads, PFF
Supplier Device Package5-CA Module
