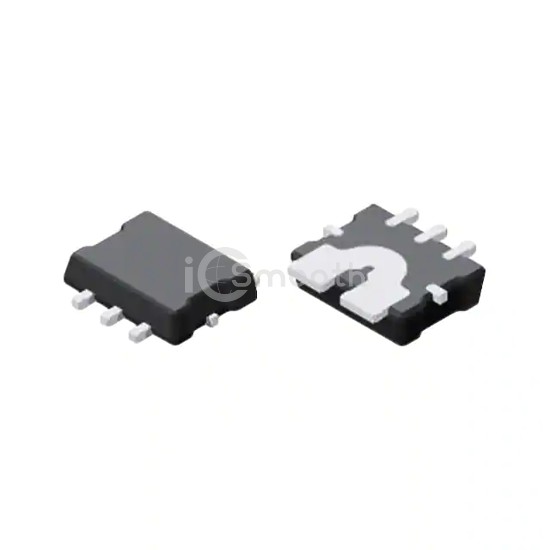

Name: ACS72981LLRATR-100B5
Brand: Allegro MicroSystems
SKU: ACS72981LLRATR-100B5
Price: 4.69 USD
Availability: InStock

REF: ACS72981LLRATR-100B5 Allegro MicroSystems

ACS72981LLRATR-100B5

Allegro MicroSystems

HIGH PRECISION LINEAR HALL EFFEC

ACS72981LLRATR-100B5 is a Current Sensors manufactured by Allegro MicroSystems. HIGH PRECISION LINEAR HALL EFFEC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 7-PowerSMD Module.

Datasheet Request a Quote

In Stock: 1,022

Tiered Pricing USD

1+ $4.6900 —

5+ $4.2080 -10%

10+ $4.0290 -14%

25+ $3.8148 -19%

50+ $3.6684 -22%

100+ $3.5342 -25%

500+ $3.2727 -30% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Differential
Current - Sensing	100A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	20mV/A
Frequency	DC ~ 250kHz
Linearity	±0.8%

Accuracy	-
Voltage - Supply	4.5V ~ 5.5V
Response Time	1.8µs
Current - Supply (Max)	14mA (Typ)
Operating Temperature	-40°C ~ 150°C (TA)
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	7-PowerSMD Module
Supplier Device Package	7-PSOF
