ACS726LLFTR-20B-T

In Stock: 3,199

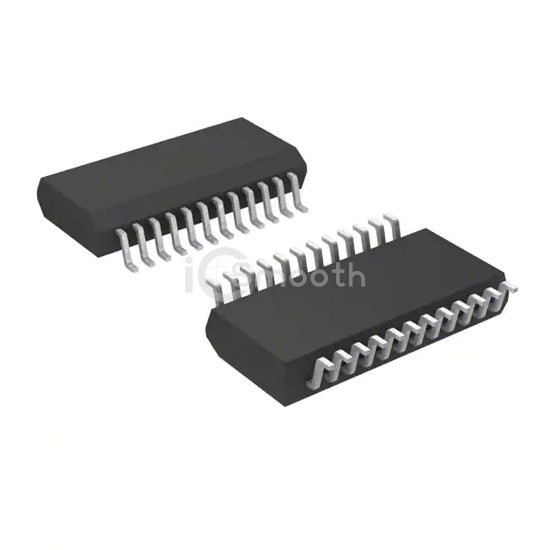

ACS726LLFTR-20B-T - Allegro MicroSystems - Current Sensors
REF: ACS726LLFTR-20B-T Allegro MicroSystems
ACS726LLFTR-20B-T

Allegro MicroSystems

SENSOR CURRENT HALL 20A AC/DC

ACS726LLFTR-20B-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 20A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - supply 3V ~ 3.6V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,199

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing20A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity100mV/A
FrequencyDC ~ 120kHz
Linearity±0.5%
Accuracy±1%
Voltage - Supply3V ~ 3.6V
Response Time5µs
Current - Supply (Max)40mA
Operating Temperature-40°C ~ 150°C
PolarizationBidirectional
Mounting TypeSurface Mount
Package / Case24-SSOP (0.154", 3.90mm Width)
Supplier Device Package24-QSOP
