Name: ACS720KLATR-15AB-T
Brand: Allegro MicroSystems
SKU: ACS720KLATR-15AB-T
Price: 4.23 USD
Availability: InStock

REF: ACS720KLATR-15AB-T Allegro MicroSystems

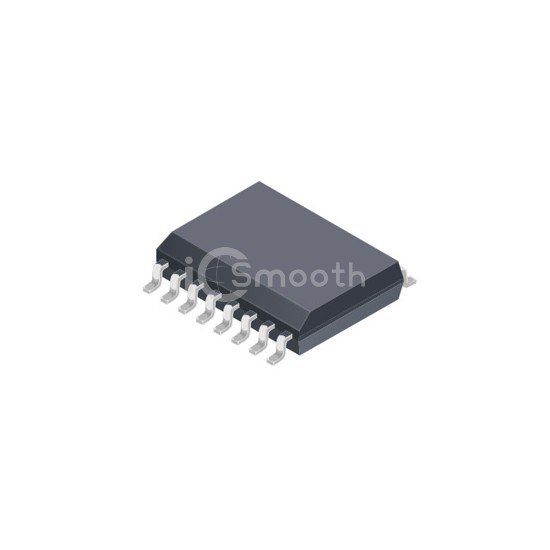

ACS720KLATR-15AB-T

Allegro MicroSystems

CURRENT SENSOR

ACS720KLATR-15AB-T is a Current Sensors manufactured by Allegro MicroSystems. CURRENT SENSOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 8,070

Tiered Pricing USD

1+ $4.2300 —

5+ $3.7860 -10%

10+ $3.6220 -14%

25+ $3.4268 -19%

50+ $3.2936 -22%

100+ $3.1716 -25%

500+ $2.9260 -31% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	15A
Number of Channels	1
Output	Ratiometric, Current
Sensitivity	90mV/A
Frequency	120kHz
Linearity	±0.75%

Accuracy	±1.6%
Voltage - Supply	4.5V ~ 5.5V
Response Time	4µs (Typ)
Current - Supply (Max)	16mA
Operating Temperature	-40°C ~ 125°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
