ACS716KLATR-9BB-NL-T

In Stock: 4,939

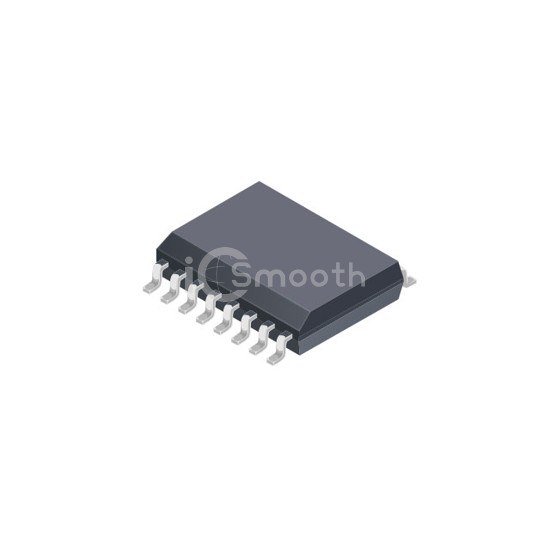

ACS716KLATR-9BB-NL-T - Allegro MicroSystems - Current Sensors
REF: ACS716KLATR-9BB-NL-T Allegro MicroSystems
ACS716KLATR-9BB-NL-T

Allegro MicroSystems

SENSOR CURRENT HALL

ACS716KLATR-9BB-NL-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 3.6V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 4,939

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing9A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity60mV/A
FrequencyDC ~ 120kHz
Linearity±0.25%
Accuracy±2.5%
Voltage - Supply3V ~ 3.6V
Response Time4µs
Current - Supply (Max)11mA
Operating Temperature-40°C ~ 125°C
PolarizationBidirectional
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
