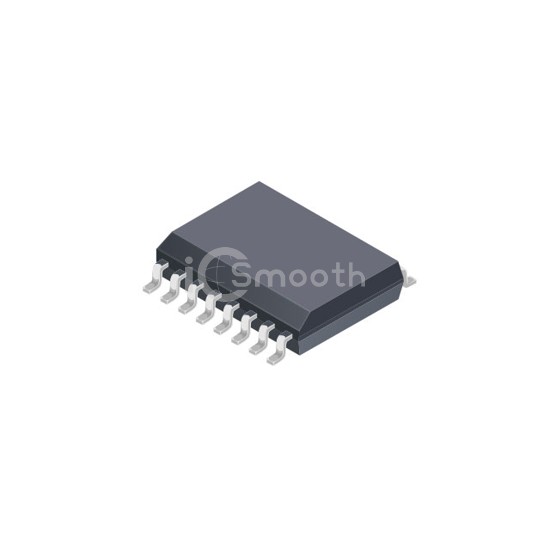

Name: ACS716KLATR-6BB-T
Brand: Allegro MicroSystems
SKU: ACS716KLATR-6BB-T
Price: 4.60 USD
Availability: InStock

REF: ACS716KLATR-6BB-T Allegro MicroSystems

ACS716KLATR-6BB-T

Allegro MicroSystems

SENSOR CURRENT HALL 6A AC/DC

ACS716KLATR-6BB-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 6A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 3.6V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,780

Tiered Pricing USD

1+ $4.6000 —

5+ $4.1220 -10%

10+ $3.9460 -14%

25+ $3.7356 -19%

50+ $3.5918 -22%

100+ $3.4601 -25%

500+ $3.1977 -30% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	6A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	100mV/A
Frequency	DC ~ 120kHz
Linearity	±0.25%

Accuracy	±2.2%
Voltage - Supply	3V ~ 3.6V
Response Time	4µs
Current - Supply (Max)	11mA
Operating Temperature	-40°C ~ 125°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
