ACS711EEXLT-15AB-T

In Stock: 9,712

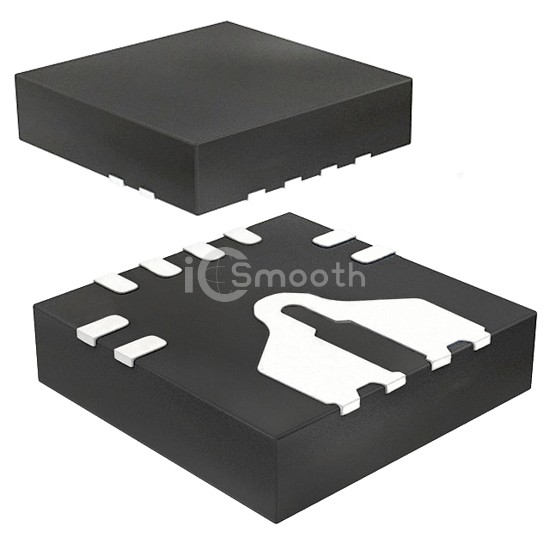

ACS711EEXLT-15AB-T - Allegro MicroSystems - Current Sensors
REF: ACS711EEXLT-15AB-T Allegro MicroSystems
ACS711EEXLT-15AB-T

Allegro MicroSystems

SENSOR CURRENT HALL 15.5A AC/DC

ACS711EEXLT-15AB-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 15.5A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 12-PowerWFQFN.

Datasheet Request a Quote

In Stock: 9,712

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing15.5A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity90mV/A
FrequencyDC ~ 100kHz
Linearity±1%
Accuracy±5%
Voltage - Supply3V ~ 5.5V
Response Time4.6µs
Current - Supply (Max)5.5mA
Operating Temperature-40°C ~ 85°C
PolarizationBidirectional
Mounting TypeSurface Mount
Package / Case12-PowerWFQFN
Supplier Device Package12-QFN (3x3)
