Name: ACS710KLATR-10BB-T
Brand: Allegro MicroSystems
SKU: ACS710KLATR-10BB-T
Price: 4.60 USD
Availability: InStock

REF: ACS710KLATR-10BB-T Allegro MicroSystems

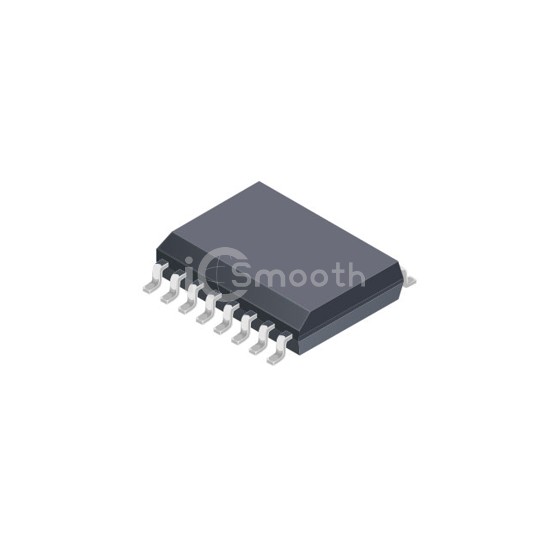

ACS710KLATR-10BB-T

Allegro MicroSystems

SENSOR CURRENT 10A

ACS710KLATR-10BB-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT 10A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 3V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,676

Tiered Pricing USD

1+ $4.6000 —

5+ $4.1220 -10%

10+ $3.9460 -14%

25+ $3.7356 -19%

50+ $3.5918 -22%

100+ $3.4601 -25%

500+ $3.1977 -30% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	10A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	85mV/A
Frequency	120kHz
Linearity	±0.25%

Accuracy	±1.6%
Voltage - Supply	3V ~ 5.5V
Response Time	4µs
Current - Supply (Max)	14.5mA
Operating Temperature	-40°C ~ 125°C (TA)
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
