ACS709LLFTR-6BB-T

In Stock: 6,392

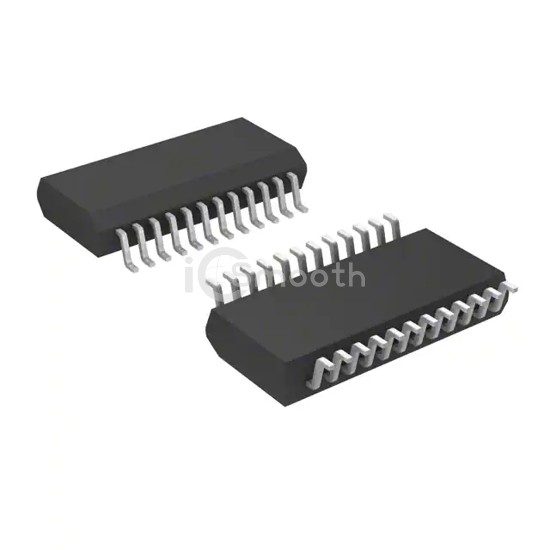

ACS709LLFTR-6BB-T - Allegro MicroSystems - Current Sensors
REF: ACS709LLFTR-6BB-T Allegro MicroSystems
ACS709LLFTR-6BB-T

Allegro MicroSystems

SENSOR CURRENT HALL 6A AC/DC

ACS709LLFTR-6BB-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 6A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - supply 3V ~ 5.5V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,392

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing6.5A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity90mV/A
FrequencyDC ~ 120kHz
Linearity±0.25%
Accuracy±2%
Voltage - Supply3V ~ 5.5V
Response Time4µs
Current - Supply (Max)14.5mA
Operating Temperature-40°C ~ 150°C
PolarizationBidirectional
Mounting TypeSurface Mount
Package / Case24-SSOP (0.154", 3.90mm Width)
Supplier Device Package24-QSOP
