Name: ACS709LLFTR-35BB-T
Brand: Allegro MicroSystems
SKU: ACS709LLFTR-35BB-T
Price: 2.84 USD
Availability: InStock

REF: ACS709LLFTR-35BB-T Allegro MicroSystems

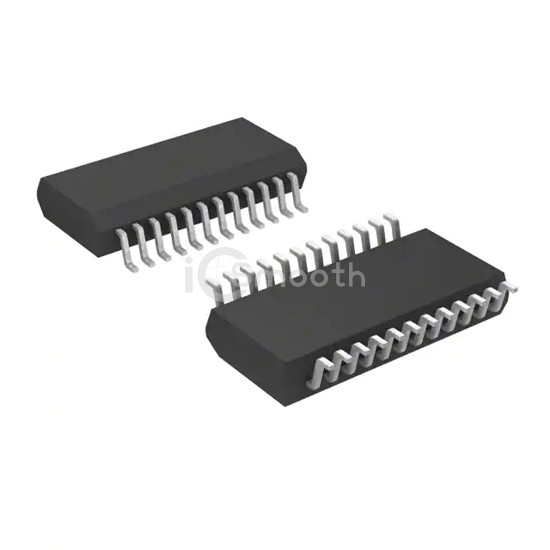

ACS709LLFTR-35BB-T

Allegro MicroSystems

SENSOR CURRENT HALL 37.5A AC/DC

ACS709LLFTR-35BB-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 37.5A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - supply 3V ~ 5.5V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,770

Tiered Pricing USD

1+ $2.8400 —

5+ $2.5320 -11%

10+ $2.4180 -15%

25+ $2.2812 -20%

50+ $2.1882 -23%

100+ $2.1028 -26%

500+ $1.9313 -32%

1,000+ $1.8674 -34% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	37.5A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	28mV/A
Frequency	DC ~ 120kHz
Linearity	±0.25%

Accuracy	±3%
Voltage - Supply	3V ~ 5.5V
Response Time	4µs
Current - Supply (Max)	14.5mA
Operating Temperature	-40°C ~ 150°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-QSOP
