Name: ACS709LLFTR-20BB-T
Brand: Allegro MicroSystems
SKU: ACS709LLFTR-20BB-T
Price: 5.18 USD
Availability: InStock

REF: ACS709LLFTR-20BB-T Allegro MicroSystems

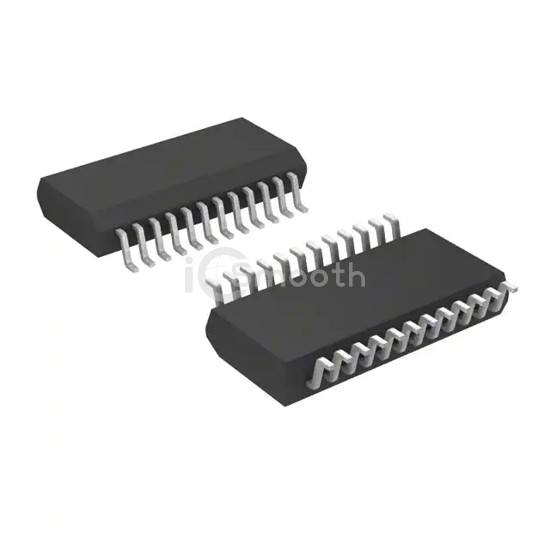

ACS709LLFTR-20BB-T

Allegro MicroSystems

SENSOR CURRENT HALL 20A AC/DC

ACS709LLFTR-20BB-T is a Current Sensors manufactured by Allegro MicroSystems. SENSOR CURRENT HALL 20A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - supply 3V ~ 5.5V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,924

Tiered Pricing USD

1+ $5.1800 —

5+ $4.6480 -10%

10+ $4.4520 -14%

25+ $4.2180 -19%

50+ $4.0582 -22%

100+ $3.9118 -24%

500+ $3.6567 -29% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	20A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	56mV/A
Frequency	DC ~ 120kHz
Linearity	±0.25%

Accuracy	±2%
Voltage - Supply	3V ~ 5.5V
Response Time	4µs
Current - Supply (Max)	14.5mA
Operating Temperature	-40°C ~ 150°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-QSOP
