Name: CZ3AG1
Brand: Asahi Kasei Microdevices/AKM
SKU: CZ3AG1
Price: 5.95 USD
Availability: InStock

REF: CZ3AG1 Asahi Kasei Microdevices/AKM

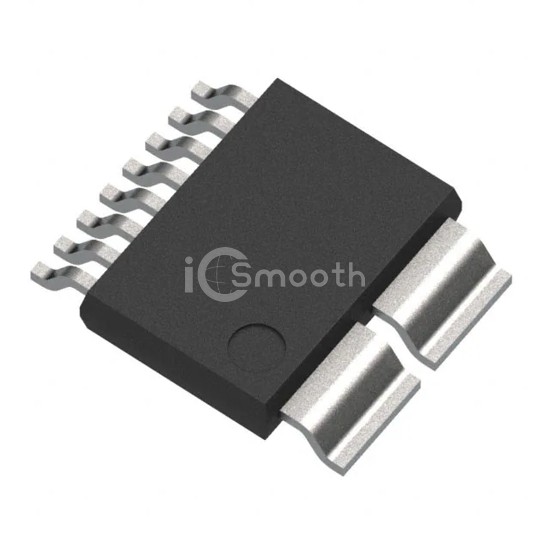

CZ3AG1

3V OUTPUT ACCURATE CORELESS CURR

CZ3AG1 is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. 3V OUTPUT ACCURATE CORELESS CURR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-PowerSOIC (0.303", 7.70mm Width), 10 Leads.

Datasheet Request a Quote

In Stock: 968

Tiered Pricing USD

1+ $5.9500 —

5+ $5.3560 -10%

10+ $5.1350 -14%

25+ $4.8696 -18%

50+ $4.6886 -21%

100+ $4.5225 -24%

500+ $4.2840 -28% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	11.6A
Number of Channels	1
Output	Voltage
Sensitivity	120mV/A
Frequency	-
Linearity	±0.6%

Accuracy	±2.1%
Voltage - Supply	4.5V ~ 5.5V
Response Time	3.6µs
Current - Supply (Max)	17mA (Typ)
Operating Temperature	-40°C ~ 85°C (TA)
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Supplier Device Package	10-SMD
