Name: CZ3706
Brand: Asahi Kasei Microdevices/AKM
SKU: CZ3706
Price: 8.61 USD
Availability: InStock

REF: CZ3706 Asahi Kasei Microdevices/AKM

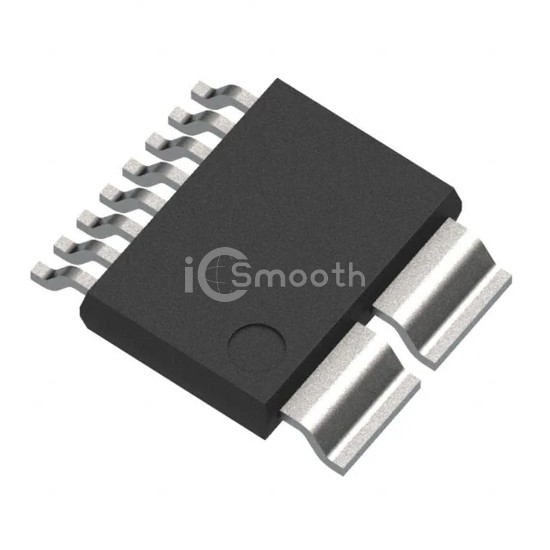

CZ3706

IC CORELESS CURRENT SENSOR 10VSO

CZ3706 is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. IC CORELESS CURRENT SENSOR 10VSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-PowerSOIC (0.303", 7.70mm Width), 10 Leads.

Datasheet Request a Quote

In Stock: 732

Tiered Pricing USD

1+ $8.6100 —

5+ $7.7820 -10%

10+ $7.4740 -13%

25+ $7.1052 -17%

50+ $6.8532 -20%

100+ $6.6223 -23%

500+ $6.4872 -25% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	180A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	12mV/A
Frequency	-
Linearity	±0.13%

Accuracy	±1%
Voltage - Supply	4.5V ~ 5.5V
Response Time	1µs
Current - Supply (Max)	21.6mA
Operating Temperature	-40°C ~ 105°C (TA)
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Supplier Device Package	10-SMD
