Name: CQ330H
Brand: Asahi Kasei Microdevices/AKM
SKU: CQ330H
Availability: InStock

REF: CQ330H Asahi Kasei Microdevices/AKM

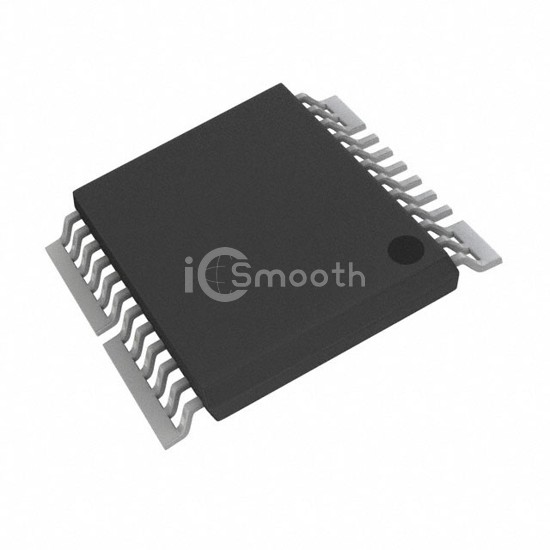

CQ330H

SENSOR CURRENT HALL 42A AC/DC

CQ330H is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. SENSOR CURRENT HALL 42A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 90°C, voltage - supply 4.5V ~ 5.5V, package / case 24-LSSOP (0.220", 5.60mm Width), 10 Leads.

Datasheet Request a Quote

In Stock: 5,826

Specifications

18 parameters

Product Status	Last Time Buy
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	42A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	50mV/A
Frequency	1MHz
Linearity	±0.6%

Accuracy	±0.5%
Voltage - Supply	4.5V ~ 5.5V
Response Time	0.5µs
Current - Supply (Max)	11mA
Operating Temperature	-40°C ~ 90°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	24-LSSOP (0.220", 5.60mm Width), 10 Leads
Supplier Device Package	24-VSOP
