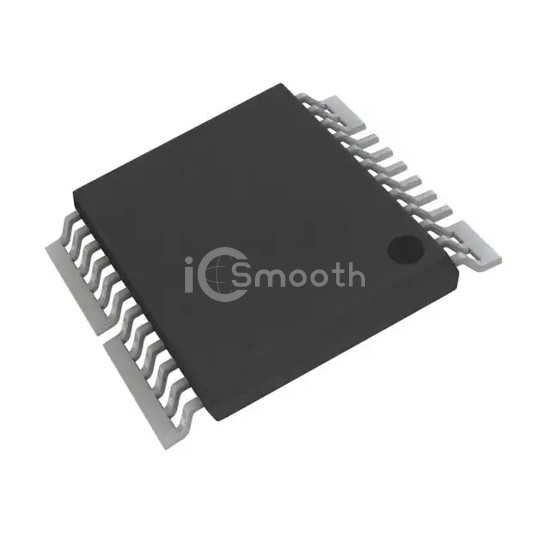

Name: CQ320B
Brand: Asahi Kasei Microdevices/AKM
SKU: CQ320B
Price: 8.68 USD
Availability: InStock

REF: CQ320B Asahi Kasei Microdevices/AKM

CQ320B

CORELESS CURENT SENSOR / 20A W/S

CQ320B is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. CORELESS CURENT SENSOR / 20A W/S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 90°C, voltage - supply 3.3V, package / case 24-LSSOP (0.220", 5.60mm Width), 10 Leads.

Datasheet Request a Quote

In Stock: 325

Specifications

18 parameters

Product Status	Last Time Buy
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	20.9A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	120mV/A
Frequency	-
Linearity	-

Accuracy	±1.3%
Voltage - Supply	3.3V
Response Time	0.5µs
Current - Supply (Max)	6.2mA
Operating Temperature	-40°C ~ 90°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	24-LSSOP (0.220", 5.60mm Width), 10 Leads
Supplier Device Package	24-VSOP
