Name: CQ3204
Brand: Asahi Kasei Microdevices/AKM
SKU: CQ3204
Price: 3.70 USD
Availability: InStock

REF: CQ3204 Asahi Kasei Microdevices/AKM

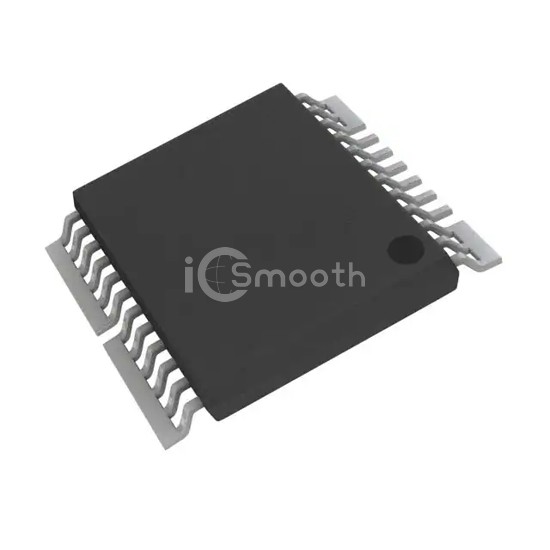

CQ3204

CORELESS CURENT SENSOR / 20A W/S

CQ3204 is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. CORELESS CURENT SENSOR / 20A W/S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 90°C (TA), voltage - supply 2.7V ~ 3.63V, package / case 24-LSSOP (0.220", 5.60mm Width), 10 Leads.

Datasheet Request a Quote

In Stock: 9,625

Specifications

18 parameters

Product Status	Last Time Buy
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	44A
Number of Channels	1
Output	Ratiometric, Current
Sensitivity	30mV/A
Frequency	1MHz
Linearity	±0.6%

Accuracy	±1.2%
Voltage - Supply	2.7V ~ 3.63V
Response Time	0.5µs
Current - Supply (Max)	9.6mA
Operating Temperature	-40°C ~ 90°C (TA)
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	24-LSSOP (0.220", 5.60mm Width), 10 Leads
Supplier Device Package	24-VSOP
