CQ3200

In Stock: 9,337

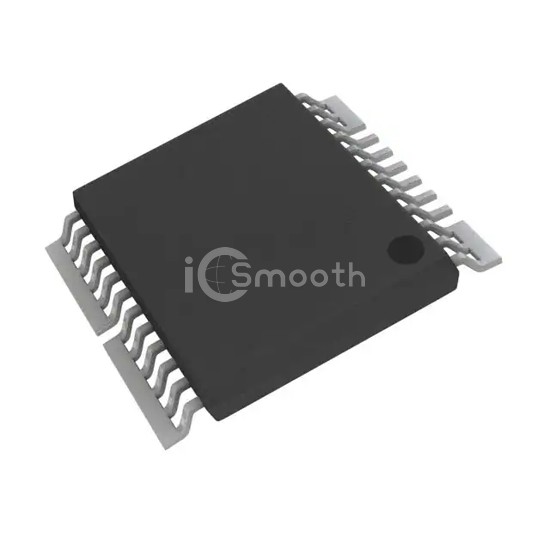

CQ3200 - Asahi Kasei Microdevices/AKM - Current Sensors
REF: CQ3200 Asahi Kasei Microdevices/AKM
CQ3200

Asahi Kasei Microdevices/AKM

CORELESS CURENT SENSOR / 20A W/S

CQ3200 is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. CORELESS CURENT SENSOR / 20A W/S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 90°C, voltage - supply 2.7V ~ 3.63V, package / case 24-LSSOP (0.220", 5.60mm Width), 10 Leads.

Datasheet Request a Quote

In Stock: 9,337

Specifications

18 parameters
Product StatusLast Time Buy
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing8.5A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity155mV/A
Frequency1MHz
Linearity±0.6%
Accuracy±1.3%
Voltage - Supply2.7V ~ 3.63V
Response Time500ns
Current - Supply (Max)9.6mA
Operating Temperature-40°C ~ 90°C
PolarizationBidirectional
Mounting TypeSurface Mount
Package / Case24-LSSOP (0.220", 5.60mm Width), 10 Leads
Supplier Device Package24-VSOP
