Name: CQ2334
Brand: Asahi Kasei Microdevices/AKM
SKU: CQ2334
Availability: InStock

REF: CQ2334 Asahi Kasei Microdevices/AKM

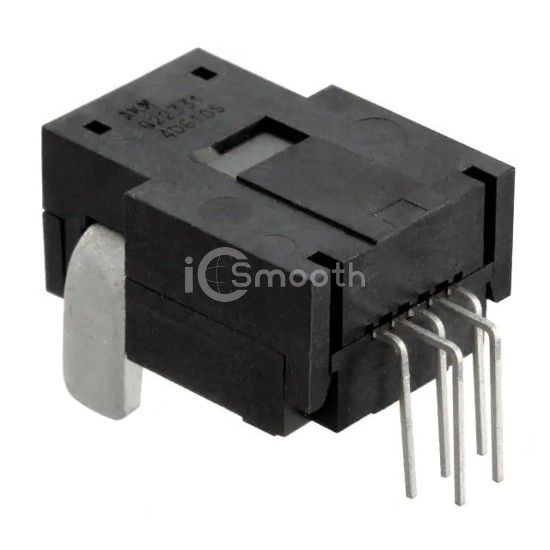

CQ2334

SENSOR CURRENT HALL 50A AC/DC

CQ2334 is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. SENSOR CURRENT HALL 50A AC/DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - supply 4.5V ~ 5.5V, package / case Module.

Datasheet Request a Quote

In Stock: 9,843

Specifications

18 parameters

Product Status	Last Time Buy
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	54A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	40mV/A
Frequency	300kHz
Linearity	±1%

Accuracy	1%
Voltage - Supply	4.5V ~ 5.5V
Response Time	1µs
Current - Supply (Max)	11mA
Operating Temperature	-40°C ~ 110°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	Module
Supplier Device Package	-
