CQ209D

In Stock: 4,842

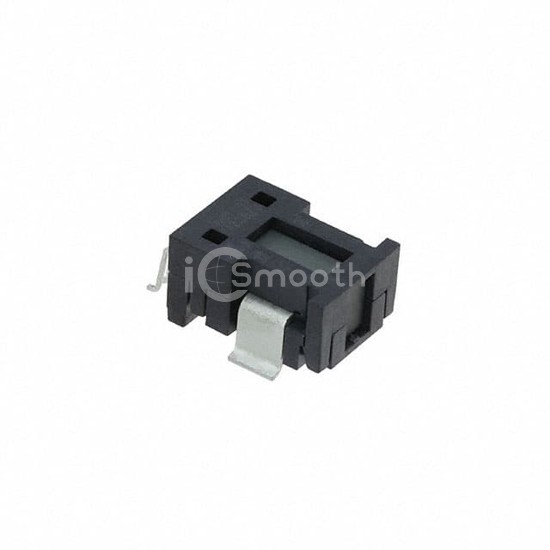

CQ209D - Asahi Kasei Microdevices/AKM - Current Sensors
REF: CQ209D Asahi Kasei Microdevices/AKM
CQ209D

Asahi Kasei Microdevices/AKM

SENSOR CURRENT HALL 20A AC/DC

CQ209D is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. SENSOR CURRENT HALL 20A AC/DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 90°C, voltage - supply 4.5V ~ 5.5V, package / case Module.

Datasheet Request a Quote

In Stock: 4,842

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing41A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity50mV/A
Frequency400kHz
Linearity±1%
Accuracy±1%
Voltage - Supply4.5V ~ 5.5V
Response Time1µs
Current - Supply (Max)9mA
Operating Temperature-40°C ~ 90°C
PolarizationBidirectional
Mounting TypeThrough Hole
Package / CaseModule
Supplier Device Package-
