CQ209B

In Stock: 6,798

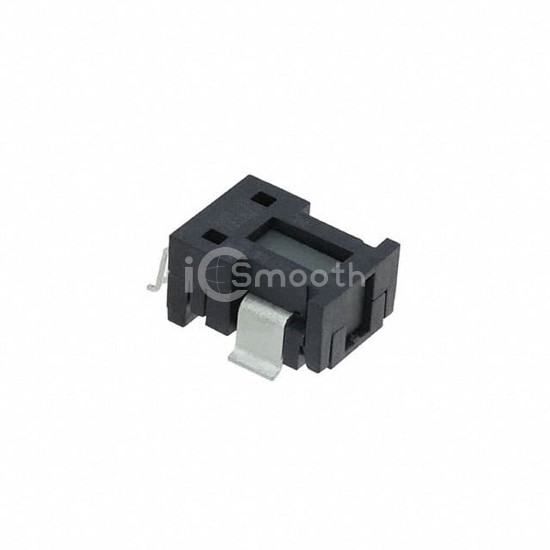

CQ209B - Asahi Kasei Microdevices/AKM - Current Sensors
REF: CQ209B Asahi Kasei Microdevices/AKM
CQ209B

Asahi Kasei Microdevices/AKM

SENSOR CURRENT HALL 20A AC/DC

CQ209B is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. SENSOR CURRENT HALL 20A AC/DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 90°C, voltage - supply 4.5V ~ 5.5V, package / case Module.

Datasheet Request a Quote

In Stock: 6,798

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing-
Number of Channels1
OutputRatiometric, Voltage
Sensitivity115mV/A
Frequency-
Linearity±1%
Accuracy±1%
Voltage - Supply4.5V ~ 5.5V
Response Time1µs
Current - Supply (Max)9mA
Operating Temperature-40°C ~ 90°C
PolarizationBidirectional
Mounting TypeSurface Mount
Package / CaseModule
Supplier Device Package-
