CQ209A

In Stock: 9,675

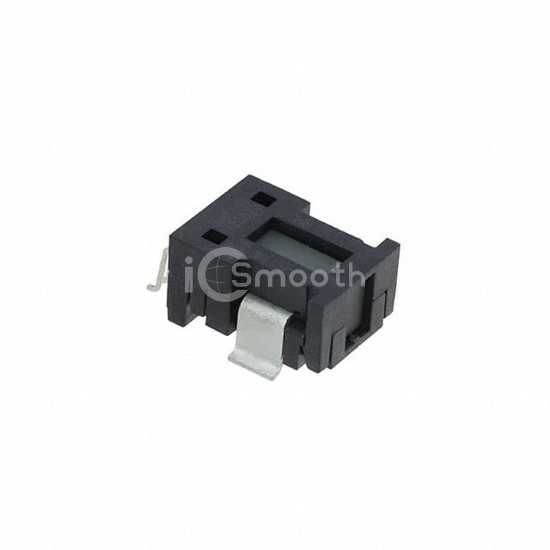

CQ209A - Asahi Kasei Microdevices/AKM - Current Sensors
REF: CQ209A Asahi Kasei Microdevices/AKM
CQ209A

Asahi Kasei Microdevices/AKM

SENSOR CURRENT HALL 20A AC/DC

CQ209A is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. SENSOR CURRENT HALL 20A AC/DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 90°C, voltage - supply 4.5V ~ 5.5V, package / case Module.

Datasheet Request a Quote

In Stock: 9,675

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC/DC
Sensor TypeHall Effect, Open Loop
Current - Sensing31.8A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity66mV/A
Frequency400kHz
Linearity±1%
Accuracy±1%
Voltage - Supply4.5V ~ 5.5V
Response Time1µs
Current - Supply (Max)9mA
Operating Temperature-40°C ~ 90°C
PolarizationBidirectional
Mounting TypeThrough Hole
Package / CaseModule
Supplier Device Package-
