Name: CQ206B
Brand: Asahi Kasei Microdevices/AKM
SKU: CQ206B
Price: 3.13 USD
Availability: InStock

REF: CQ206B Asahi Kasei Microdevices/AKM

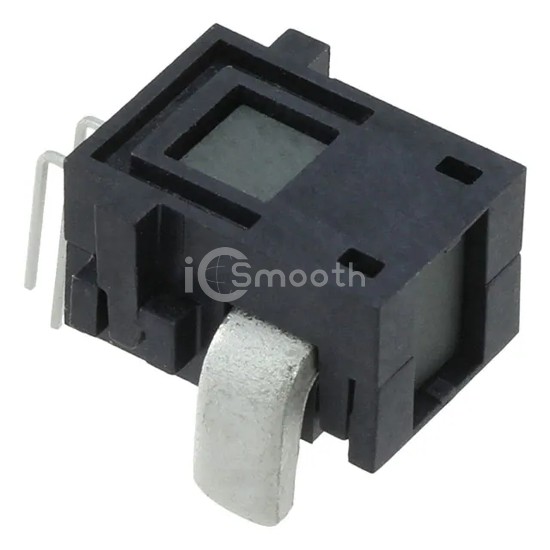

CQ206B

SENSOR CURRENT HALL 50A AC/DC

CQ206B is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. SENSOR CURRENT HALL 50A AC/DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 90°C, voltage - supply 4.5V ~ 5.5V, package / case Module.

Datasheet Request a Quote

In Stock: 2,593

Specifications

18 parameters

Product Status	Obsolete
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	45A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	90mV/A
Frequency	400kHz
Linearity	±1%

Accuracy	±1%
Voltage - Supply	4.5V ~ 5.5V
Response Time	1µs
Current - Supply (Max)	9mA
Operating Temperature	-40°C ~ 90°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	Module
Supplier Device Package	-
