Name: AK8771
Brand: Asahi Kasei Microdevices/AKM
SKU: AK8771
Price: 0.42 USD
Availability: InStock

REF: AK8771 Asahi Kasei Microdevices/AKM

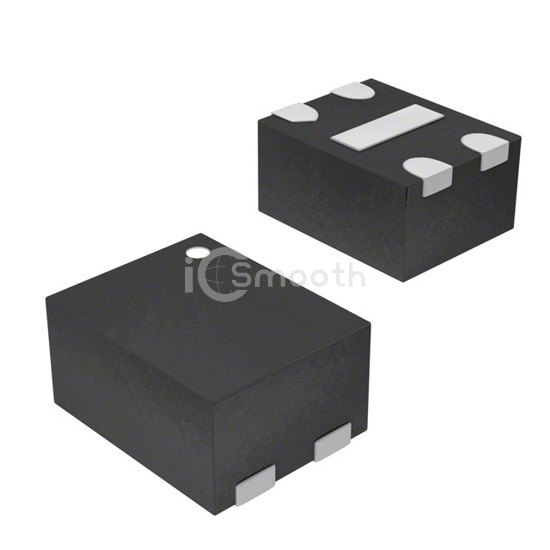

AK8771

MAGNETIC SWITCH LATCH 4DFN

AK8771 is a Magnetic Sensors - Switches (Solid State) manufactured by Asahi Kasei Microdevices/AKM. MAGNETIC SWITCH LATCH 4DFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply 1.6V ~ 5.5V, package / case 4-XFDFN Exposed Pad.

Request a Quote

In Stock: 3,194

Specifications

15 parameters

Product Status	Obsolete
Function	Latch
Technology	Hall Effect
Polarization	South Pole
Sensing Range	4.2mT Trip, -4.2mT Release
Test Condition	-30°C ~ 85°C
Voltage - Supply	1.6V ~ 5.5V
Current - Supply (Max)	10mA

Current - Output (Max)	500µA
Output Type	Push-Pull
Features	-
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	4-DFN (1.1x1.4)
Package / Case	4-XFDFN Exposed Pad
