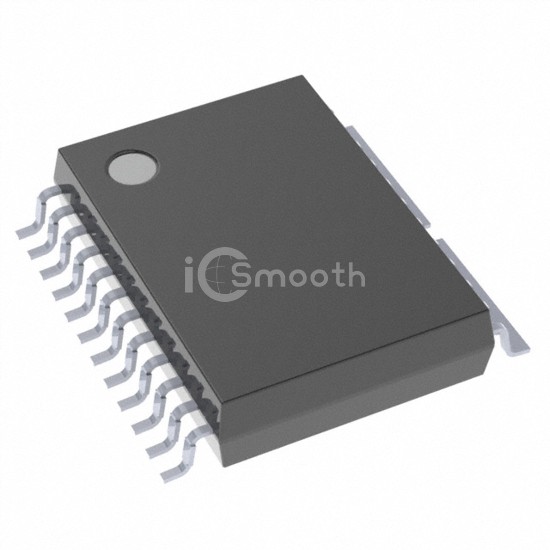

Name: AK3101
Brand: Asahi Kasei Microdevices/AKM
SKU: AK3101
Price: 4.55 USD
Availability: InStock

REF: AK3101 Asahi Kasei Microdevices/AKM

AK3101

IC CORELESS CURRENT SENSE 14SOP

AK3101 is a Current Sensors manufactured by Asahi Kasei Microdevices/AKM. IC CORELESS CURRENT SENSE 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 90°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 24-PowerLSSOP (0.220", 5.60mm Width), 14 Leads.

Datasheet Request a Quote

In Stock: 1,444

Specifications

18 parameters

Product Status	Obsolete
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	10.7A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	195mV/A
Frequency	210kHz
Linearity	±0.6%

Accuracy	±1.5%
Voltage - Supply	4.5V ~ 5.5V
Response Time	2µs
Current - Supply (Max)	20mA
Operating Temperature	-40°C ~ 90°C (TA)
Polarization	Unidirectional
Mounting Type	Surface Mount
Package / Case	24-PowerLSSOP (0.220", 5.60mm Width), 14 Leads
Supplier Device Package	24-SMD
