Name: AK2921T
Brand: Asahi Kasei Microdevices/AKM
SKU: AK2921T
Availability: InStock

REF: AK2921T Asahi Kasei Microdevices/AKM

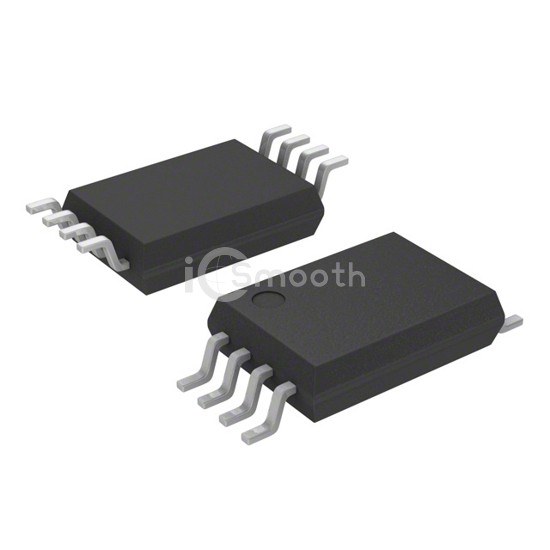

AK2921T

IC OPAMP ZERO-DRIFT 2CIRC 8TMSOP

AK2921T is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Asahi Kasei Microdevices/AKM. IC OPAMP ZERO-DRIFT 2CIRC 8TMSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-TSSOP, 8-MSOP (0.110", 2.80mm Width), current - supply 260µA.

Request a Quote

In Stock: 6,120

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Zero-Drift
Number of Circuits	2
Output Type	-
Slew Rate	1V/µs
Gain Bandwidth Product	800 kHz
-3db Bandwidth	-
Current - Input Bias	20 pA
Voltage - Input Offset	1 µV

Current - Supply	260µA
Current - Output / Channel	35 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Supplier Device Package	8-TMSOP
