SN54LS377WB

In Stock: 1,714

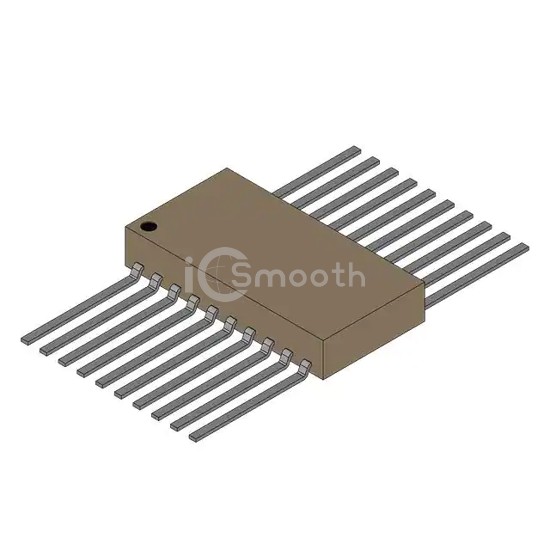

SN54LS377WB - Advanced Micro Devices - Logic - Flip Flops
REF: SN54LS377WB Advanced Micro Devices
SN54LS377WB

Advanced Micro Devices

D FLIP-FLOP, 8-FUNC

SN54LS377WB is a Logic - Flip Flops manufactured by Advanced Micro Devices. D FLIP-FLOP, 8-FUNC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-CFlatpack.

Datasheet Request a Quote

In Stock: 1,714

Specifications

17 parameters
Product StatusActive
FunctionMaster Reset
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency40 MHz
Max Propagation Delay @ V, Max CL27ns @ 5V, 15pF
Trigger TypePositive Edge
Current - Output High, Low8mA, 400µA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)28 mA
Input Capacitance-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package20-CFlatpack
Package / Case20-CFlatpack
