AM686HC

In Stock: 2,096

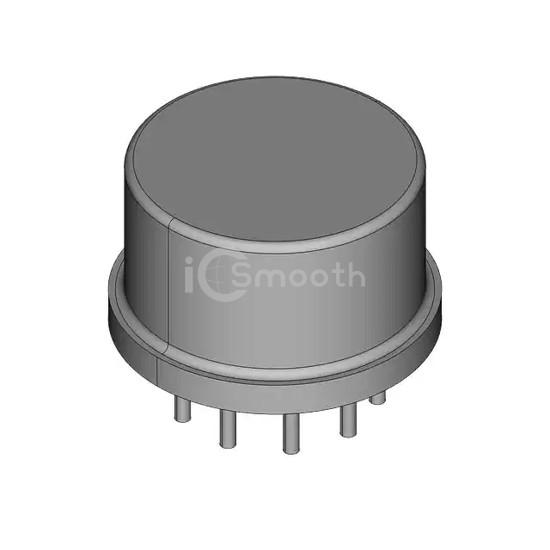

AM686HC - Advanced Micro Devices - Linear - Comparators
REF: AM686HC Advanced Micro Devices
AM686HC

Advanced Micro Devices

SINGLE COMPARATOR

AM686HC is a Linear - Comparators manufactured by Advanced Micro Devices. SINGLE COMPARATOR. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case TO-100-10 Metal Can, output type TTL.

Datasheet Request a Quote

In Stock: 2,096

Specifications

16 parameters
Product StatusActive
TypeGeneral Purpose
Number of Elements1
Output TypeTTL
Voltage - Supply, Single/Dual (±)-5.7V ~ -6.3V, 4.75V ~ 5.25V
Voltage - Input Offset (Max)10mV @ 5V
Current - Input Bias (Max)13µA
Current - Output (Typ)-
Current - Quiescent (Max)42mA
CMRR, PSRR (Typ)80dB CMRR, 60dB PSRR
Propagation Delay (Max)15ns
Hysteresis-
Operating Temperature0°C ~ 70°C
Package / CaseTO-100-10 Metal Can
Mounting TypeThrough Hole
Supplier Device PackageTO-100-10
