AM685HL

In Stock: 2,758

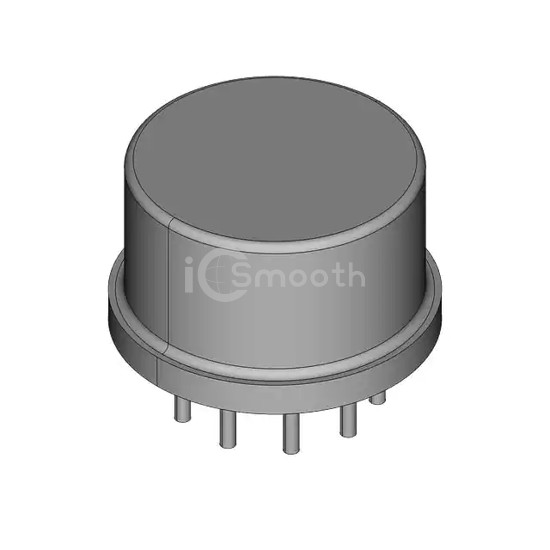

AM685HL - Advanced Micro Devices - Linear - Comparators
REF: AM685HL Advanced Micro Devices
AM685HL

Advanced Micro Devices

SINGLE COMPARATOR

AM685HL is a Linear - Comparators manufactured by Advanced Micro Devices. SINGLE COMPARATOR. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, package / case TO-100-10 Metal Can, output type Open-Emitter, ECL.

Datasheet Request a Quote

In Stock: 2,758

Specifications

16 parameters
Product StatusActive
TypeGeneral Purpose
Number of Elements1
Output TypeOpen-Emitter, ECL
Voltage - Supply, Single/Dual (±)-
Voltage - Input Offset (Max)2mV
Current - Input Bias (Max)10µA
Current - Output (Typ)30mA
Current - Quiescent (Max)26mA
CMRR, PSRR (Typ)80dB CMRR, 60dB PSRR
Propagation Delay (Max)6.5ns
Hysteresis-
Operating Temperature-30°C ~ 85°C
Package / CaseTO-100-10 Metal Can
Mounting TypeThrough Hole
Supplier Device PackageTO-100-10
