AM6685HLB

In Stock: 173

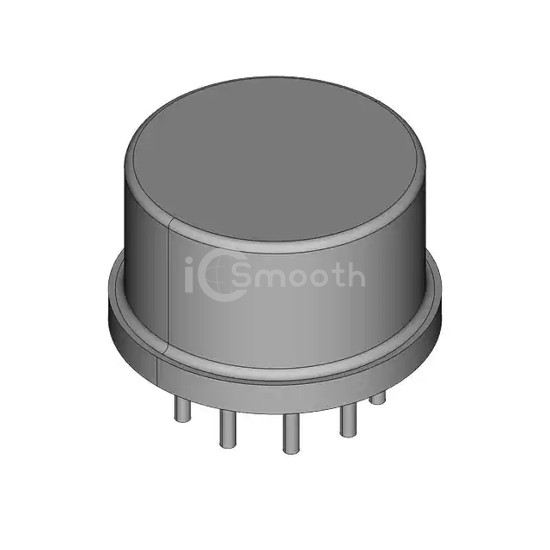

AM6685HLB - Advanced Micro Devices - Linear - Comparators
REF: AM6685HLB Advanced Micro Devices
AM6685HLB

Advanced Micro Devices

SINGLE COMPARATOR

AM6685HLB is a Linear - Comparators manufactured by Advanced Micro Devices. SINGLE COMPARATOR. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, package / case TO-100-10 Metal Can, output type Open-Emitter, ECL.

Datasheet Request a Quote

In Stock: 173

Specifications

16 parameters
Product StatusActive
TypeGeneral Purpose
Number of Elements1
Output TypeOpen-Emitter, ECL
Voltage - Supply, Single/Dual (±)-
Voltage - Input Offset (Max)2mV
Current - Input Bias (Max)15µA
Current - Output (Typ)30mA
Current - Quiescent (Max)22mA
CMRR, PSRR (Typ)80dB CMRR, 60dB PSRR
Propagation Delay (Max)4ns
Hysteresis-
Operating Temperature-30°C ~ 85°C
Package / CaseTO-100-10 Metal Can
Mounting TypeThrough Hole
Supplier Device PackageTO-100-10
