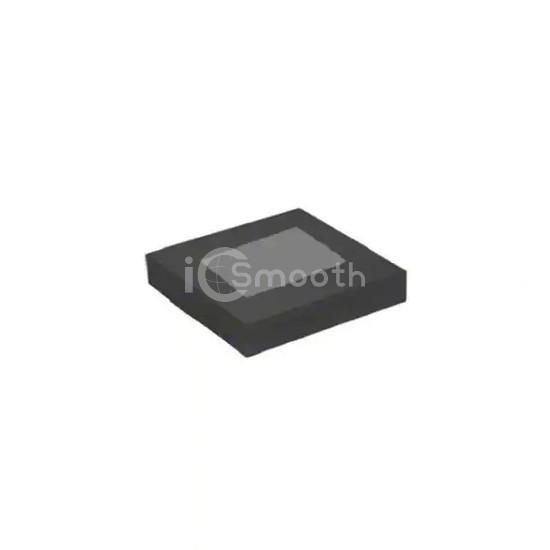

ASNT5143-ALD

In Stock: 3,858
ASNT5143-ALD - ADSANTEC - Logic - Gates and Inverters
REF: ASNT5143-ALD ADSANTEC
ASNT5143-ALD

ADSANTEC

IC GATE XOR ADJ 1CH 2IN 16LGA

ASNT5143-ALD is a Logic - Gates and Inverters manufactured by ADSANTEC. IC GATE XOR ADJ 1CH 2IN 16LGA. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C (TJ), voltage - supply ±2.9V ~ 3.3V, package / case 16-WFLGA.

Datasheet Request a Quote

In Stock: 3,858

Specifications

15 parameters
Product StatusActive
Logic TypeXOR (Exclusive OR)
Number of Circuits1
Number of Inputs2
FeaturesAdjustable Output Amplitude and Frequency Response, Heat Sink on Top
Voltage - Supply±2.9V ~ 3.3V
Current - Quiescent (Max)90 mA
Current - Output High, Low90mA
Logic Level - Low0.1V ~ 0.8V
Logic Level - High0V ~ 3.6V
Max Propagation Delay @ V, Max CL-
Operating Temperature-25°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package16-LGA (3x3)
Package / Case16-WFLGA
