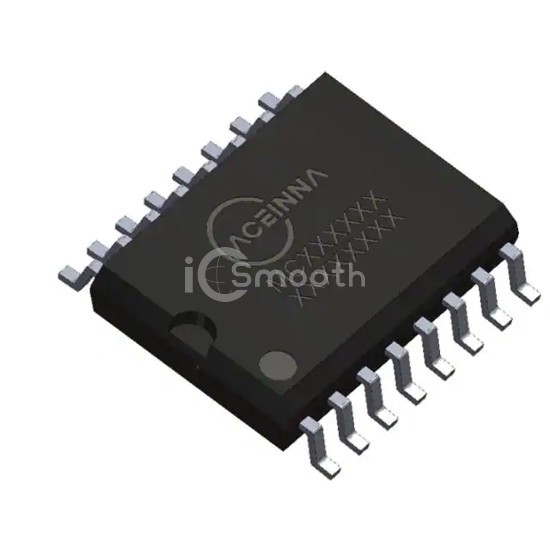

Name: MCA1101-50-5
Brand: Aceinna Electric Inc.
SKU: MCA1101-50-5
Price: 2820.00 USD
Availability: InStock

REF: MCA1101-50-5 Aceinna Electric Inc.

MCA1101-50-5

Aceinna Electric Inc.

50A, 5V, FIX GAIN, 1.5MHZ BW, GA

MCA1101-50-5 is a Current Sensors manufactured by Aceinna Electric Inc.. 50A, 5V, FIX GAIN, 1.5MHZ BW, GA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 9,990

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	-
Current - Sensing	50A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	35mV/A
Frequency	1.5MHz
Linearity	±1.5%

Accuracy	±3.6%
Voltage - Supply	4.5V ~ 5.5V
Response Time	300ns
Current - Supply (Max)	8mA
Operating Temperature	-40°C ~ 105°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	-
