S-817A56APF-CVTTFG

In Stock: 8,241

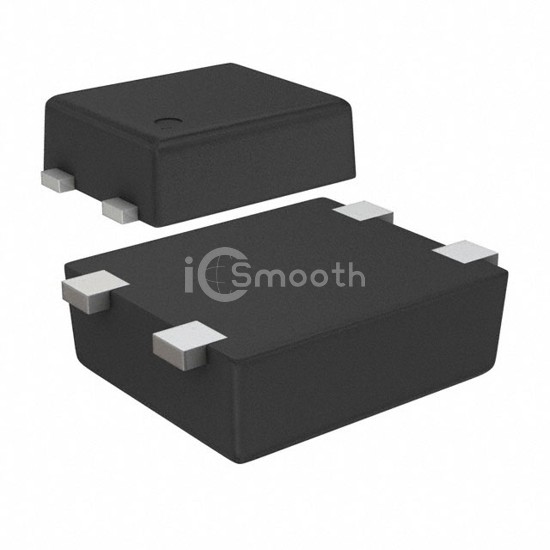

S-817A56APF-CVTTFG - ABLIC Inc. - PMIC - Voltage Regulators - Linear
REF: S-817A56APF-CVTTFG ABLIC Inc.
S-817A56APF-CVTTFG

ABLIC Inc.

IC REG LINEAR 5.6V 75MA SNT4A

S-817A56APF-CVTTFG is a PMIC - Voltage Regulators - Linear manufactured by ABLIC Inc.. IC REG LINEAR 5.6V 75MA SNT4A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-SMD, Flat Leads, current - output 75mA.

Datasheet Request a Quote

In Stock: 8,241

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)10V
Voltage - Output (Min/Fixed)5.6V
Voltage - Output (Max)-
Voltage Dropout (Max)0.23V @ 10mA
Current - Output75mA
Current - Quiescent (Iq)2.5 µA
Current - Supply (Max)-
PSRR-
Control Features-
Protection FeaturesShort Circuit
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case4-SMD, Flat Leads
Supplier Device PackageSNT-4A
