S-1323B22NB-N8HTFG

In Stock: 5,091

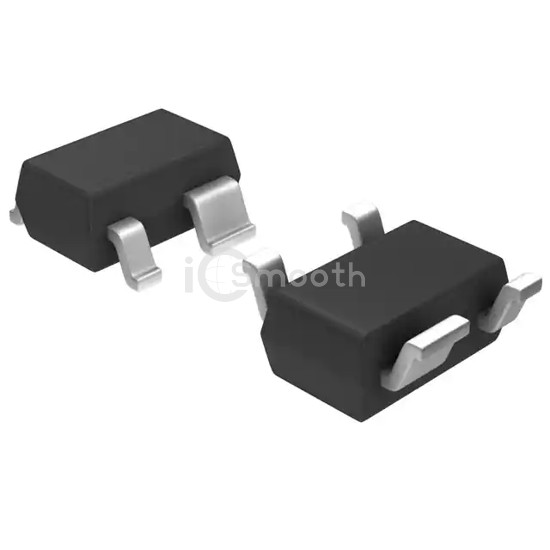

S-1323B22NB-N8HTFG - ABLIC Inc. - PMIC - Voltage Regulators - Linear
REF: S-1323B22NB-N8HTFG ABLIC Inc.
S-1323B22NB-N8HTFG

ABLIC Inc.

IC REG LINEAR 2.2V 150MA SC82AB

S-1323B22NB-N8HTFG is a PMIC - Voltage Regulators - Linear manufactured by ABLIC Inc.. IC REG LINEAR 2.2V 150MA SC82AB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-82A, SOT-343, current - supply (max) 90 µA.

Datasheet Request a Quote

In Stock: 5,091

Specifications

18 parameters
Product StatusNot For New Designs
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)6.5V
Voltage - Output (Min/Fixed)2.2V
Voltage - Output (Max)-
Voltage Dropout (Max)0.65V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)1 µA
Current - Supply (Max)90 µA
PSRR70dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSC-82A, SOT-343
Supplier Device PackageSC-82AB
