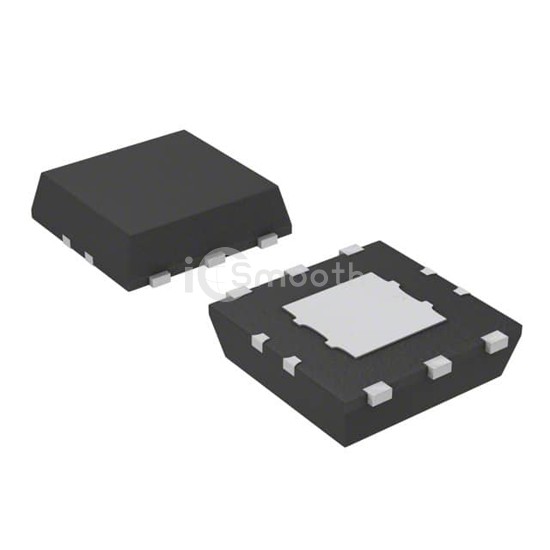

Name: S-1170B25PD-OTKTFG
Brand: ABLIC Inc.
SKU: S-1170B25PD-OTKTFG
Availability: InStock

REF: S-1170B25PD-OTKTFG ABLIC Inc.

S-1170B25PD-OTKTFG

IC REG LINEAR 2.5V 800MA 6HSON

S-1170B25PD-OTKTFG is a PMIC - Voltage Regulators - Linear manufactured by ABLIC Inc.. IC REG LINEAR 2.5V 800MA 6HSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-SMD, Flat Lead Exposed Pad, current - supply (max) 160 µA.

Datasheet Request a Quote

In Stock: 5,420

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6.5V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.22V @ 300mA
Current - Output	800mA

Current - Quiescent (Iq)	1 µA
Current - Supply (Max)	160 µA
PSRR	70dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Thermal Shutdown
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Lead Exposed Pad
Supplier Device Package	6-HSON (A) (2.9x2.8)
