S-1155B2J-U5T1G

In Stock: 6,180

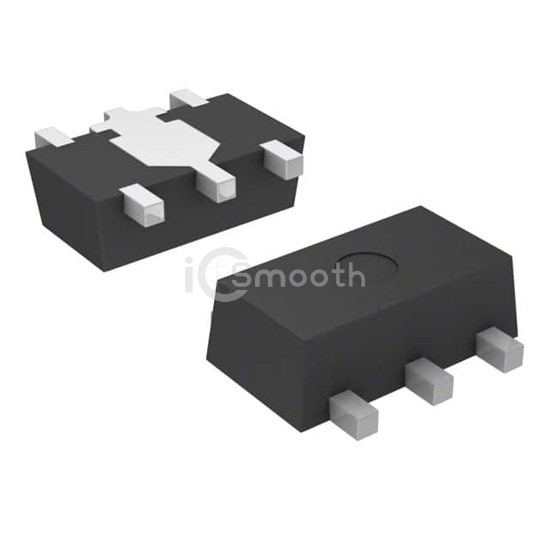

S-1155B2J-U5T1G - ABLIC Inc. - PMIC - Voltage Regulators - Linear
REF: S-1155B2J-U5T1G ABLIC Inc.
S-1155B2J-U5T1G

ABLIC Inc.

IC REG LIN 2.85V 500MA SOT89-5

S-1155B2J-U5T1G is a PMIC - Voltage Regulators - Linear manufactured by ABLIC Inc.. IC REG LIN 2.85V 500MA SOT89-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-89-5/6, current - supply (max) 90 µA.

Datasheet Request a Quote

In Stock: 6,180

Specifications

18 parameters
Product StatusNot For New Designs
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.85V
Voltage - Output (Max)-
Voltage Dropout (Max)0.1V @ 200mA
Current - Output500mA
Current - Quiescent (Iq)1 µA
Current - Supply (Max)90 µA
PSRR65dB (1kHz)
Control FeaturesEnable
Protection FeaturesOvercurrent, Thermal Shutdown
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSOT-89-5/6
Supplier Device PackageSOT-89-5
